Brim projection / crown depth
Short-Brim & Low-Profile Caps
A shorter visor changes the front silhouette, but it cannot be specified by a front photo alone. Check the cap from the side and record the crown depth alongside visor projection.
See sample references →
CONSTRUCTION NOTES
What matters in this collection
The useful distinction is not simply “short” versus “standard”. A cap with a compact visor may still sit tall, while a soft-looking crown can feel different once its internal construction is chosen. These real comparison and measurement views provide a starting point for discussing the pattern.
Brim projection is measured consistently from the joining seam to the visor tip.

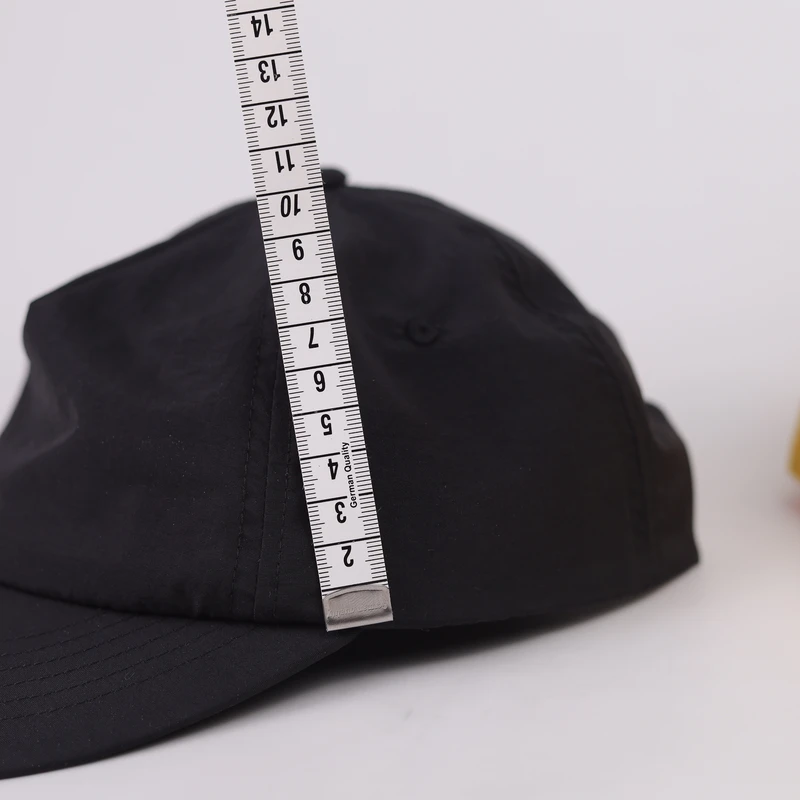

Crown depth and front-panel support must be agreed separately from the visor length.
A front-facing reference can hide the slope of a brim; request a side view.
ORIGINAL PHOTO REFERENCES
Inspect the sample details
Check the cap from the side, then record visor projection from the crown seam to the tip. The same brim can look different on a deeper or softer crown.

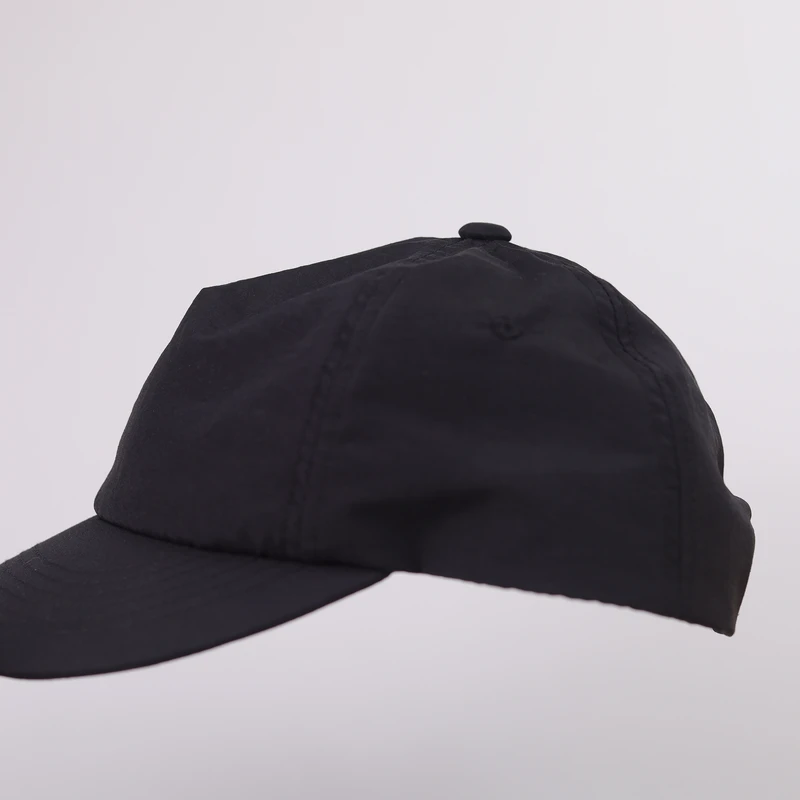

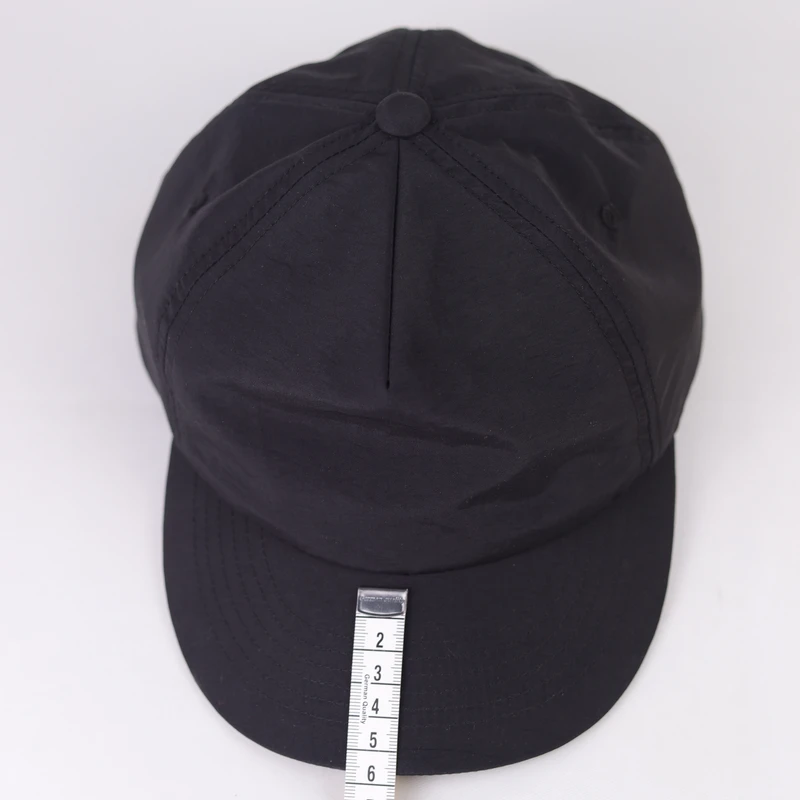

Black Short-Visor Cap: Front and Side Reference
Use two viewing angles to discuss the shape before a pattern is made.
Inspect sample →

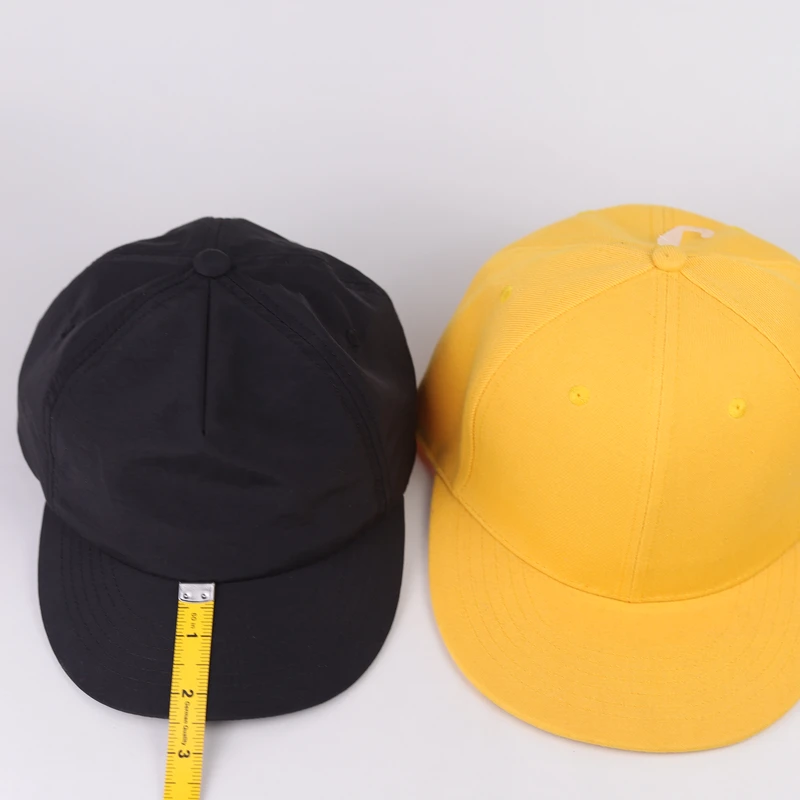

Short Visor vs Standard Brim: Measurement References
A comparison photo is helpful; a measurement convention makes it repeatable.
Inspect sample →IMAGE GALLERY
Short-Brim & Low-Profile Caps from more than one angle
Open reference →
Open reference →Open reference →
Open reference →
Open reference →Some images show customer artwork or sample labels. They are construction references; ownership of all artwork remains with its respective owner.
ADDITIONAL ORIGINAL PHOTO REFERENCES
Measure a compact brim without losing the cap profile
A short bill changes the entire front view. Compare the crown, visor edge and side profile together rather than specifying a cap from the front alone.
Questions to settle before sampling
- Record visor projection and curve from the physical sample; do not infer a 6 cm bill from a photo.
- Ask for a side view at the approved crown depth and head-size range.
- Approve the decoration position and rear adjustment before bulk production.
FROM A REFERENCE TO A SPECIFICATION
Tell us which construction you want to reproduce or change.
Send a side view, front view or existing sample. Include the panel structure, desired brim, logo and estimated quantity. We will clarify what needs to be confirmed before sampling.
